AI coding agent

If you already use a coding agent — Claude Code, Codex, Cursor, Windsurf, or any other agent that supports MCP — you can let it drive your open Swebsy Studio tab directly. This is the recommended way to build with AI without adding a separate provider API key to Swebsy. Your coding agent’s own plan, usage limits, and privacy policy still apply.

How it works: your coding agent talks MCP to a small local bridge (@swebsy/mcp), which relays commands to the open Studio tab over a WebSocket on 127.0.0.1 (default port 37373). The relay is local-only, and Studio removes API keys, deploy tokens, and chat history from agent-visible data before it crosses the bridge.

Prefer an API key instead?

You can also connect a provider API key and chat inside Swebsy — see AI builder setup. Both can be configured; when they are, the AI Builder panel shows an Agent ⇄ Chat toggle so you pick which one to use.

1. Add the bridge to your coding agent

Before you start

• Node.js 20 or newer - A coding agent with MCP support (Claude Code, Codex, Cursor, Windsurf, …) - Swebsy open in a browser tab (Home or Studio)

Register @swebsy/mcp as an MCP server in your agent.

Claude Code

claude mcp add swebsy -- npx -y @swebsy/mcp

Codex

codex mcp add swebsy -- npx -y @swebsy/mcp

Cursor

Add to ~/.cursor/mcp.json (or .cursor/mcp.json inside a project):

{
  "mcpServers": {
    "swebsy": {
      "command": "npx",
      "args": ["-y", "@swebsy/mcp"]
    }
  }
}

GitHub Copilot (VS Code)

code --add-mcp '{"name":"swebsy","command":"npx","args":["-y","@swebsy/mcp"]}'

Windsurf

Add to ~/.codeium/windsurf/mcp_config.json:

{
  "mcpServers": {
    "swebsy": {
      "command": "npx",
      "args": ["-y", "@swebsy/mcp"]
    }
  }
}

Other MCP agents

Any agent that can run MCP stdio servers works — register npx -y @swebsy/mcp as a server named swebsy in its MCP configuration.

To use a different port, set the SWEBSY_AGENT_PORT environment variable on the server entry. Set SWEBSY_AGENT_DIR to choose where screenshots and exports are written; without it, the bridge uses .swebsy-agent in the nearest pnpm workspace or its current working directory. To point the pairing link at a non-default Studio origin (local dev or self-host), set SWEBSY_APP_URL (defaults to https://studio.swebsy.com). swebsy_start_pairing opens the pairing link in your default browser automatically; set SWEBSY_NO_OPEN=1 to disable that and just receive the link.

2. Pair Swebsy with your agent

The fastest way is a pairing link — your agent generates it, it opens in your browser automatically, done.

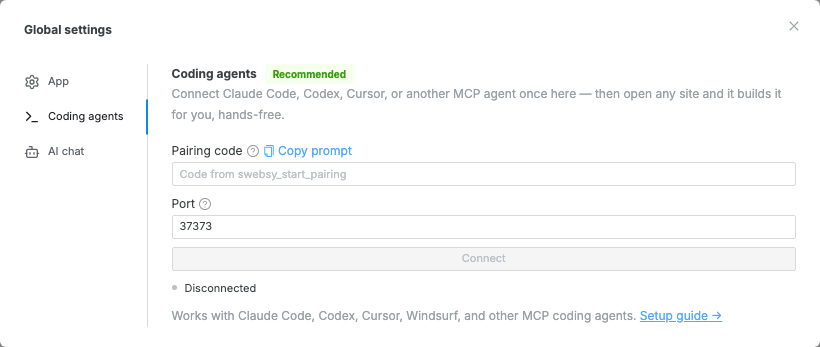

Global settings → Coding agents. Copy prompt grabs the ready-made message; the code/port fields are the manual fallback.

1. In Swebsy, open the Global settings gear and go to the Coding agents tab (also reachable from the Pair agent button in the AI Builder panel). Click Copy prompt to grab a ready-made message.

2. Paste that prompt into your coding agent. It runs swebsy_start_pairing, which opens a single-use pairing link (a ?swebsy_pair=… URL) in your default browser and also returns it in the reply.

3. Studio connects automatically — no form to fill in. The one-time code is stripped from the address bar once it’s used. If the link opened in a browser where Swebsy isn’t running, open the returned link in the right one instead.

Expected result

The status badge shows Paired, and the panel switches to “Agent connected” (or the connected-agent count when more than one agent is running). Your coding agent’s swebsy_status tool now reports the connected tab and agent roster.

Manual entry (fallback)

If the browser didn’t open (or opened the wrong one), swebsy_start_pairing also returns the raw code and port. In the same Global settings → Coding agents form, paste the code, leave the port at 37373 unless you changed it, and click Connect.

The pairing link expires after one minute and can be used only once. After a successful pairing, Studio remembers the session in that browser and reconnects automatically after a reload or temporary connection loss.

3. Create, open, and build from your agent

Prompt your coding agent as usual. It can list installed templates and saved sites directly from Home, create a blank or template-based site, open a site by ID, and rename a site’s internal Swebsy name. Site IDs are authoritative, so duplicate names are fine. Creating from a template preserves that template’s name and project data; call swebsy_rename_site separately when you want a different internal name.

Creating or opening a site starts Studio navigation. Poll swebsy_status until editorReady is true and siteId is the expected ID before sending editing commands. While Home is open or Studio is loading, status reports siteId: null and editorReady: false.

Most editing tools act on the currently selected page. The agent can switch pages with swebsy_select_page, inspect stable component paths with swebsy_read_page, and then edit the intended target.

A typical site-management workflow

You can give the agent one natural-language request, for example:

List my installed templates, create a site from the portfolio template, wait for it to open, rename it to Northwind Portfolio, and add a Contact page.

The agent should perform the workspace operations in this order:

1. Run swebsy_list_templates and choose the template by its returned id.
2. Run swebsy_create_site with that templateId and keep the returned siteId.
3. Poll swebsy_status until the same siteId is present and editorReady is true.
4. Run swebsy_rename_site with the siteId and new internal name.
5. Use the editing and inspection tools only after the editor is ready.

The same pattern applies to swebsy_open_site: list sites, select by ID, open the site, then wait for the expected ready editor before making changes. The bridge invalidates the previous editor while navigation is in progress, so queued edits cannot land on the site you just left.

Creation and naming rules

Action	Behavior
swebsy_create_site {}	Creates Swebsy’s standard blank project with its automatic name and default content
swebsy_create_site { templateId }	Imports the selected template unchanged, including its name, pages, styles, symbols, and assets
swebsy_rename_site { siteId, name }	Trims the name and changes only the internal name shown on Home and in the Studio topbar
Change the browser or search-page title	Use the site’s SEO/public title settings; renaming the internal project does not change those fields

Creation deliberately has no name argument. Create or import first, then rename the resulting site explicitly. Copying and deleting sites are not available to agents; use the Project menu for those actions.

What workspace tools return

• swebsy_list_templates refreshes the installed catalog and returns template IDs, names, descriptions, tags, fonts, preview URLs, and thumbnail URLs.
• swebsy_create_site returns siteId, name, source, optional templateId, and studioPath before the paired tab navigates.
• swebsy_list_sites returns sites newest-first with only id, internal name, status, timestamps, optional templateId, pageCount, and isOpen. It does not return page content, thumbnails, assets, revisions, or settings.
• swebsy_open_site returns that site’s metadata. Opening the already active site is safe and does not reload Studio.
• swebsy_rename_site returns the updated metadata and refreshes the name on Home and in the Studio topbar.

Use multiple coding agents

You can connect several coding agents to the same open Studio tab at once. For example, Claude Code and Codex can work side by side on the same project:

1. Register @swebsy/mcp in each coding agent and start both agents.
2. Keep every MCP server on the same SWEBSY_AGENT_PORT (the default is 37373). The first server starts the shared local relay; the others join it automatically.
3. Pair the Studio tab once. You do not need a separate pairing code for each agent.

The AI Builder panel lists every connected agent, shows whether each is Working or Idle, and tags activity with the agent that initiated it. swebsy_status returns the same connected-agent roster.

One Studio tab, several agents

All connected agents share one paired Studio tab. The relay runs one editor command at a time, so commands from other agents wait in a shared queue instead of mutating the canvas concurrently. Pairing a different Studio tab to the same relay revokes the previous tab.

Screenshots and exports are returned only to the agent that requested them and are written to that MCP server’s SWEBSY_AGENT_DIR. To reduce conflicting intent, give agents separate pages or areas of responsibility and have them inspect current state before editing shared content.

Available tools

Sites and templates

Tool	Input	What it does
swebsy_list_templates	None	Refresh and list installed templates with metadata, preview URLs, and thumbnail URLs
swebsy_create_site	Optional templateId	Create the standard blank site or import a template unchanged, then open it in Studio
swebsy_list_sites	None	List saved sites newest-first as metadata only, including IDs, page counts, and open state
swebsy_open_site	siteId	Validate and open a saved site by ID; does nothing disruptive when that site is already open
swebsy_rename_site	siteId and non-empty name	Change only the internal Home/Studio site name, without changing SEO or the deployed-page title

Build and edit

Tool	What it does
swebsy_commit_design_direction	Commit the site to a visual direction — type, palette, topology — and apply it. Call once before building a new site
swebsy_replace_page_content	Replace every top-level section on the selected page; does not create a page
swebsy_create_page	Create a blank page, select it by default, and return its ID and filename
swebsy_link_page	Point an existing navbar link, link, or button at a project page
swebsy_add_section	Insert a generated section at the start, end, or next to a given targetPath
swebsy_edit_section	Replace or patch the selection or a component path from swebsy_read_page
swebsy_delete_section	Remove the selection or a component path from the page (never empty it instead)
swebsy_insert_block	Insert a catalog block, with optional adaptations and targetPath placement
swebsy_update_settings	Update general, SEO, font, theme, dark-mode, and site-wide CSS settings
swebsy_animate_page	Apply Swebsy’s scroll-reveal system to the current page or every page

Navigate, inspect, and reuse

Tool	What it does
swebsy_status	Report relay/tab state, internal site name, editor readiness, page, viewport, and tools
swebsy_list_pages	List every page with its ID, name, file name, section count, and which one is selected
swebsy_select_page	Select a page by ID or name
swebsy_read_page	Read the selected page structure and addressable paths; flags symbol mains, instances, and per-instance overrides
swebsy_read_selection	Read the currently selected component’s type, classes, attributes, and text
swebsy_list_blocks	List block IDs and labels available to swebsy_insert_block
swebsy_get_builder_guide	Load the component, theme-class, and builder conventions used by Swebsy
swebsy_list_skills	List available deep-guidance skills and their summaries
swebsy_get_skill	Load the full instructions for one guidance skill
swebsy_list_symbols	List reusable symbols, instance counts, and page counts
swebsy_promote_to_symbol	Turn a component path into a reusable symbol
swebsy_add_symbol_instance	Add a linked symbol instance at the start or end of the selected page

Before building a repeated custom component — cards, link blocks with hover effects, testimonials — have the agent load the symbols skill (swebsy_get_skill). It explains how to build one symbol and repeat it with different content per instance while the styling stays in sync, which also keeps those sections harvestable as reusable blocks.

Connection and files

Tool	What it does
swebsy_start_pairing	Open a single-use pairing link in the browser and return it plus the fallback code and port
swebsy_capture	Save a page, section (targetPath), or selected-component PNG at a fixed responsive viewport
swebsy_list_assets	List managed assets and their whole-project usage counts
swebsy_upload_asset	Put a local image file into the site’s asset library and return the src to use on it
swebsy_delete_asset	Delete a managed asset; refuses live references unless force: true
swebsy_export	Write the static site and, optionally, portable project JSON and assets

swebsy_upload_asset is how an agent gets your imagery into a site — screenshots, logos, textures, product mockups. Give it an absolute path to a .png, .jpg, .webp, .gif, .avif, or .svg (up to 10 MB) and it returns the asset src to set on an image component. Without it, an image with no src falls back to a random stock photo.

Prefer .svg for logos and other flat vector art so it stays sharp at any size. Uploaded SVG is sanitized before it is stored — scripts, event handlers, and references to external URLs are stripped — so a logo downloaded from the web is safe to drop straight in. The same sanitizing applies to SVG you upload by hand in the Studio asset manager.

Changes appear on the canvas live. Undo works as usual in the Studio tab.

Switching between agent and API key

There’s no mode setting to flip — the AI Builder panel just shows whatever you’ve configured. Set up only a coding agent and it shows Agent connected; set up only an API key and it shows the chat. When both are configured, the panel shows an Agent ⇄ Chat toggle so you can switch surfaces per session. Configure either one from the Global settings gear (Coding agents or AI chat tab).

Privacy

• The bridge listens on 127.0.0.1 only — nothing is reachable from the network.
• Studio redacts secrets before anything crosses the bridge: your AI API keys, deploy tokens, and AI chat history are never sent to the agent.
• Pairing grants every connected agent permission to edit the open project. Agents can update content, SEO, fonts, branding, and themes, but cannot modify credential, deployment, analytics-script, security-header, or raw code-injection settings.
• Workspace tools can receive installed-template metadata and saved-site metadata (including internal site names, IDs, timestamps, template IDs, and page counts). Site listing does not return page content, thumbnails, assets, revisions, or settings.
• The agent can create, open, and rename local sites. Creation and rename analytics include only source/template/site IDs; internal names and site content are not included.
• The agent can receive the non-secret site content, settings, screenshots, and exports needed to complete editing requests. Your coding agent may process that data through its own service, so its privacy policy still applies.
• Pairing codes are single-use and expire after one minute; refresh the code with swebsy_start_pairing any time.

Common issues

not_connected from agent tools — the Studio tab isn’t paired. Make sure the tab is open and pair again from Global settings → Coding agents (or the Pair agent button in the AI Builder panel).

“Could not reach the MCP bridge” — the bridge isn’t running on that port. Check the MCP server is registered and running in your agent, and that the port in Swebsy matches SWEBSY_AGENT_PORT (default 37373).

Pairing rejected — links and codes are one-time. Ask the agent to run swebsy_start_pairing again, then open the fresh link or paste the fresh fallback code.

Only one agent appears — make sure every agent’s MCP server is running and uses the same SWEBSY_AGENT_PORT. Run swebsy_status to inspect the shared roster. Pair Studio once to the shared relay rather than generating a code for each agent.

An agent waits while another is working — this is expected. The shared relay serializes commands so only one mutation runs in Studio at a time.

Status shows “Revoked” — another Studio tab, not another coding agent, paired with the same bridge and took over the session. Reconnect from the tab you want the agents to drive.

Agent connected but the AI Builder chat is gone — that’s by design: while an agent is paired you prompt from the coding agent, not the panel. If you also have an API key set, use the panel’s Agent ⇄ Chat toggle to get the built-in chat back.
